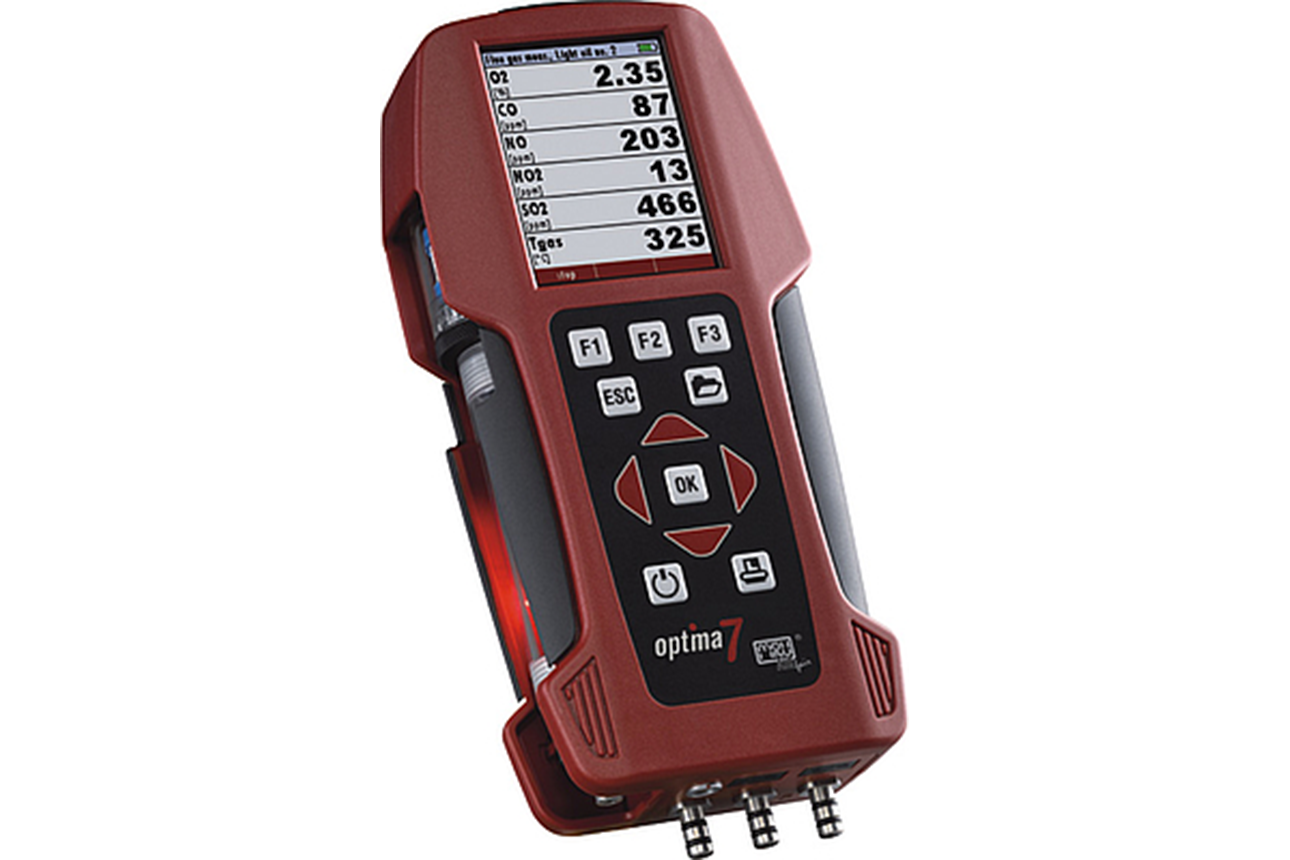

OPTIMA 7 Flue gas Analyzer
worldwide unique handheld
7-gas flue gas analyser
- for multi-gas analysis of industrial plants, engines, turbines
- 7-gas measurement of O₂ , CO, NO, NO₂, SO₂, CO₂, CxHy
- true NOx measurement, also ΔP and ΔT and flow
- calculates CO₂, η combustion efficiency, heat loss
- data logger on SD-card, USB and Bluetooth data transfer
- certification: TÜV ByRgG 280, VDI 4206-1, EN 50379
- ลักษณะพิเศษ
- Specification
- Download
worldwide unique handheld
7-gas flue gas analyser
- for multi-gas analysis of industrial plants, engines, turbines
- 7-gas measurement of O₂ , CO, NO, NO₂, SO₂, CO₂, CxHy
- true NOx measurement, also ΔP and ΔT and flow
- calculates CO₂, η combustion efficiency, heat loss
- data logger on SD-card, USB and Bluetooth data transfer
- certification: TÜV ByRgG 280, VDI 4206-1, EN 50379
Measuring range
| O₂ | 0 … 25 % |
| NO | 0 … 5.000 ppm |
| NO₂ | 0 … 1.000 ppm |
| SO₂ | 0 … 5.000 ppm |
| H2S | 0 … 2.000 ppm |
| CO (H2 compensated) | 0 … 10.000 ppm |
| Differential pressure | ± 100 hPa |
| Fluegas temperature | 0 … 1.100°C; with suitable probe |
Calculated values
| CO₂ | (infrared) 0 … 40 % |
Dimensions and other data
| Data storage | internally as well as on SD-card |
| Data transfer | via Bluetooth (option) or USB-cable |
| Display | 3,5″ colour-TFT |
| Flow velocity | 1 … 100 m/s |
| Combustion air temperature | K-type standard (option) |
| Battery operating time | up to 15 hours non-stop operation with lithium ion battery |
| Weight | approx. 750 g |
| Dimensions | 110 x 225 x 52 mm |
