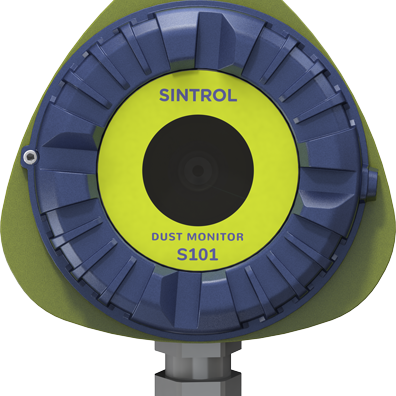

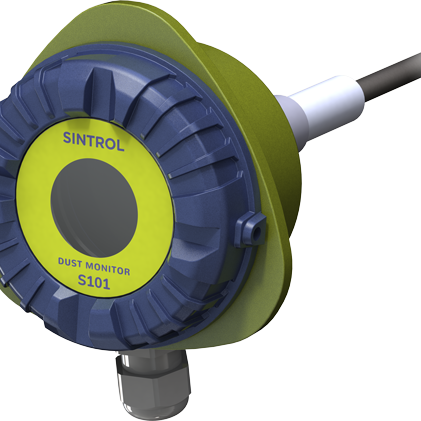

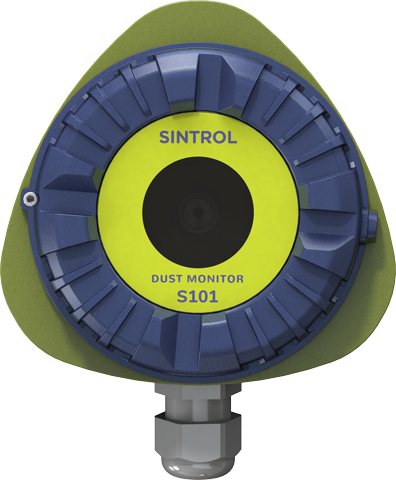

Sintrol S100 Series: Dust Monitors for Broken Bag Detection

Sintrol S100 Series is a cost-effective continuous dust monitor designed for broken bag detection and indicating changes in dust levels within gas flows. Robust and sensitive, it is suitable for duct sizes up to 800 mm in diameter and serves as the updated version of the former Sintrol Snifter series.

– Working Principle (Inductive Electrification): Utilizes advanced algorithms and signal filtration, combining DC and AC signals generated by particle contact and proximity to deliver reliable, real-time monitoring of filter leaks or broken bags.

SKU:SI0004

Request Quotation

Features
Specification
Download

– For duct sizes up to 800 mm
– Fast response to dust leaks with selectable response (FAST, MEDIUM, SLOW)
– Two relays to indicate dust alarms (S101)
– Active and isolated 4-20 mA current output (S103)
– Green, Yellow and Red LED to Indicate dust levels

Product Name: S101 / S101 Ex / S103 / S103 Ex
Measured objects: Solid particles in gas flow
Measurement principle: Inductive Electrification
Measurement range:

Detection limit 0,1 mg/m3
Max. range up to several g/m3 depending on operating conditions

Ingress protection: IP66
Power supply: 24 V DC ±10 %
Power consumption: 1W
Output signals:

S101: 2 × adjustable solid-state relays, max. 30 V DC / 200 mA
S103: Active and isolated 4…20 mA output, max. loop resistance 500 Ω

Communication interface: RS-485
Communication protocol:

Modbus RTU
Sintrol network RS485

Cable gland size: PG11

Process connection: Weld-on process connection socket, 1/2 Inch, NPT, L=34 mm

Physical characteristics

Enclosure: Aluminium
Probe length: 250 mm. (9,84 in), can be shortened by the user
Wetted parts:

Probe: Stainless steel (316L)
Insulation: Polyether ether ketone (PEEK)

Weight: 0,7 kg (1.54 lb)

Ambient conditions

Temperature: −40 … 60 °C (−40 … 140 °F) Ex models -30…60 °C (-22 … 140 °F)
Humidity: Max. 90 % relative humidity (non-condensing)

Process conditions

Temperature: Max. 250 °C (482 °F) / Ex models Max Temp. 200 °C (392 °F)
Pressure: Max. 200 kPa (29 psi)
Flow speed: Min. 3 m/s (9.84 ft/s)
Ordering information:

S101 PC901005
S101 Ex PC901006
S103 PC901010
S103 Ex PC901011

Options:

FC900162 Cable Gland for Ex Models
EC900041 RS485 to USB Converter for DustTool communication
PC900056 Quick Clamp Kit for process connection
MC900081 Weld-on connection socket, ½ inch, NPT

Hazardous location approvals:
Applicable to Ex models
ATEX: II 3D Ex tc IIIC T80 °C Dc -30 °C ≤ Tamb ≤ +60 °C
IECEx: Ex tc IIIC T80 °C Dc -30 °C ≤ Tamb +60 °C
