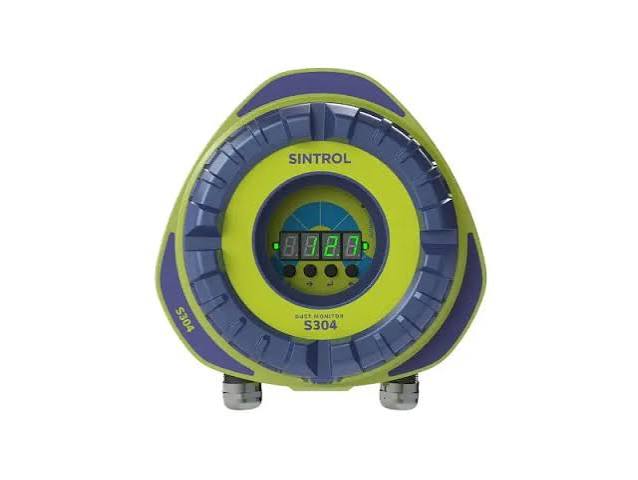

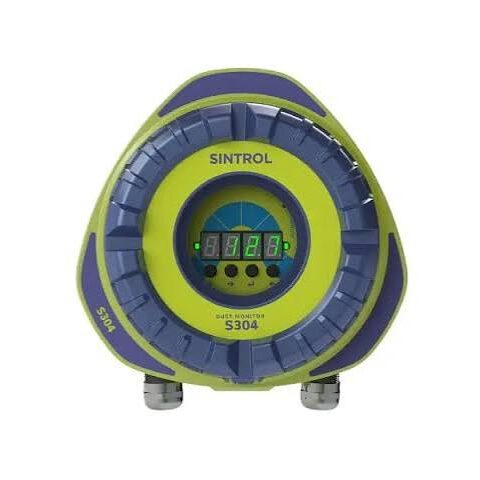

Sintrol S304: Continuous Particulate Matter Dust Monitor

Sintrol S304 is a continuous dust monitor that can be calibrated to mass concentration units (mg/m). For applications requiring absolute value measurements, it helps plant operators know the exact amount of dust passing through stacks or outlet ducts.

– Key Features: Equipped with a 4-20 mA output and two independent alarm relays to further optimize plant processes.

– Working Principle (Inductive Electrification): Utilizes advanced algorithms and signal filtration, combining DC and AC signals generated by particle contact and proximity to deliver highly accurate dust measurements.

SKU:SI0002

Request Quotation

Features
Specification
Download

– For duct sizes up to 7000 mm
– Aluminium enclosure with expectational finish quality
– Low maintenance technology
– One-sided installation
– Auto-Setup function
– Extremely wide linear measurement range
– Low detection limit of 0,01 mg/m3
– Can be calib

Measured objects: Total Suspended Particles (TSP)
Measurement principle: Inductive Electrification
Measurement range: Detection Limit 0,01 mg/m3 Maximum Range up to several g/m3, depending on operating conditions
Ingress protection: IP66
Power supply requirements: 24 V DC ±10% 1 100 … 240 V AC ±10%, 50 / 60 Hz
Power consumption: Up to 10 W DC / AC
Output signals:

2 × Independent SPDT dry contact relays, max. 30 V DC / 5 A or 240 V AC / 5 A, cos φ = 1
Isolated active 4 – 20 mA output loop, max. loop resistance 250 Ω + NAMUR NE 43 compliant alarms

Communication interface:

2 × Serial communication RS-485
USB
Radio frequency (RF, Requires optional RF antenna)

Communication protocol

Modbus RTU (with RS-485)
Sintrol network (with USB, RF and RS-485)

Physical characteristics

Enclosure: Aluminum
Wetted parts

Probe: Stainless steel (316L)
Insulation: Polyphenylene sulfide (Ryton R-4)

Weight: 1.5 kg (3.3 lb)

Ambient conditions

Temperature: -40 – 60 °C (−40 – 140 °F) / -30 – 60 °C for Ex models
Humidity: Max. 95 % relative humidity (non-condensing)

Process conditions

Temperature:

Max. 300 °C (572 °F) optionally up to 700 °C (1292 °F)
Max. 250 °C (482 °F) with Teflon-coated probe
Max. 200 °C (392 °F) for Ex models

Pressure:

Max. 600 kPa (87.02 psi) in temperatures up to 300 °C (572 °F)
Max. 300 kPa (43.51 psi) in temperatures from 300 °C (572 °F) to 700 °C (1292 °F) when high-temp process connection is used

Flow velocity: Min. 3 m/s (9.84 ft/s), max. tested 40 m/s (131.23 ft/s)

Wireless communication*

Frequency bands:

868 MHz, 15 channels
915 MHz (license-free ISM band)

Transmit power: Up to +23 dBm, user-adjustable
Receiver sensitivity: -110 dBm
Communication protocol: Proprietary Sintrol Network protocol
Typical communication range: (non-line of sight)

868 MHz version
Up to 1000 m (3280 ft) in urban environments**

Hazardous location approvals:

IECEx/ATEX: II 1/2 D Ex ia tb IIIC T200 93°C …201°C Db Ta= -30°C to +60°C
US: Zone 20 A Ex ia ta IIIC T85°C… T201°C Da | CAN: Ex ia ta IIIC T85°C… T201°C Da
US/CAN: CL II, DV 1, GP E, F, G. IS Probe Ta= -30°C to +60°C

* Requires optional RF antenna.
** Surrounding structures and other devices using radio frequencies can have significant effect on RF communication range
