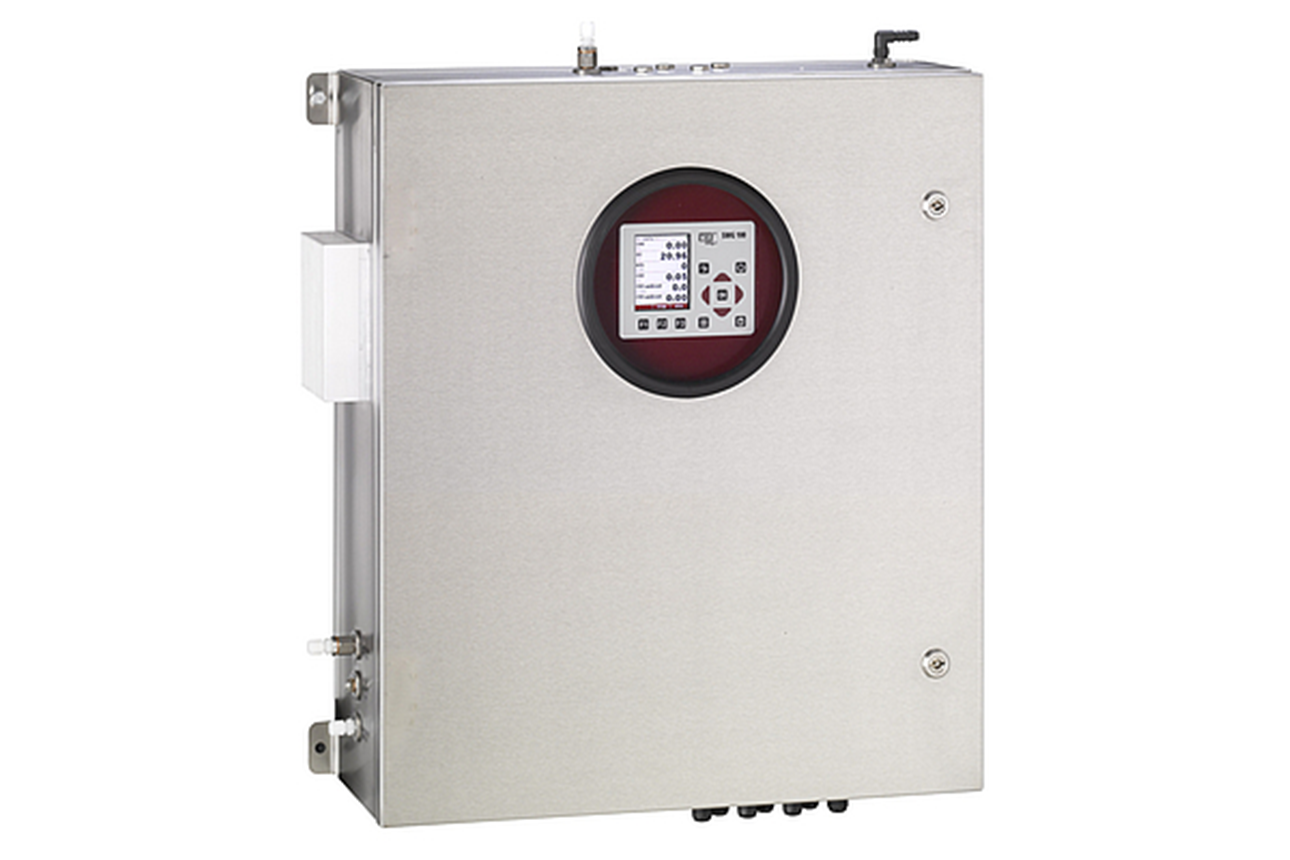

SWG 100 bio Ex
the ATEX certified analyser for biogas,
biomethane, landfill gas and coalbed methane
- industry compatible rugged design with stainless steel IP 65 cabinet
- ATEX certification according to II 3G Ex nA nC IIC T3 Gc
- efficient sample gas preparation with peltier gas cooler and condensate draining pump
- no dilution of the sample gas, neither use of compressed air is required
- direct and continuous/discontinuous measurement
- up to 4 sites monitoring (time sharing technique) with only one analyser
- Features
- Specification
- Download
the ATEX certified analyser for biogas,
biomethane, landfill gas and coalbed methane
- industry compatible rugged design with stainless steel IP 65 cabinet
- ATEX certification according to II 3G Ex nA nC IIC T3 Gc
- efficient sample gas preparation with peltier gas cooler and condensate draining pump
- no dilution of the sample gas, neither use of compressed air is required
- direct and continuous/discontinuous measurement
- up to 4 sites monitoring (time sharing technique) with only one analyser
Measuring range
| O2 | 0 … 25 % (longlife) electrochemical |
| CH4 | 0 … 100% NDIR |
| CO2 | 0 … 100% NDIR |
| H2S low | 0 … 50 ppm / overload up to 250 ppm / electrochemical |
| H2S | 0 … 2.000 ppm / overload up to 5.000 ppm / electrochemical |
| H2S high | 0 … 10.000 ppm / overload up to 50.000 ppm / electrochemical |
| H2 | 0 … 1.000 ppm / overload up to 2.000 ppm / electrochemical |
| CO | 0 … 10.000 ppm / overload up to 20.000 ppm / electrochemical |
Dimensions and other data
| Operating temperature | +5 … 45°C or -20°C … +45°C with cabinet heater |
| Display | 3,5″ TFT color display |
| Interfaces | RS485 interface (modbus RTU); 4x analog output 4-20 mA, floating, max. load 500R; 2 alarm relays, potential free contacts 24 Vdc/5 A; DIN-rail RS485 / ProfiBus converter |
| Ex classification | cabinet marking II 3G Ex nA nC IIC T3 Gc, compliance to EN 60079-0 and EN 60079-15 |
| Power supply | 230 Vac / 47 … 63 Hz / 90 W (115 Vac power supply on request) |
| Protection | IP 65 |
| Dimensions | 700x600x210 mm (HxWxD) = interior steelcase |
| Weight | approx. 40 kg |
