HK13

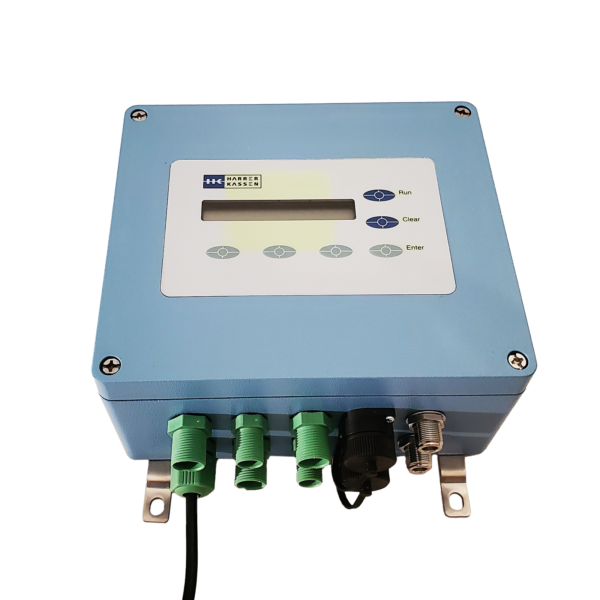

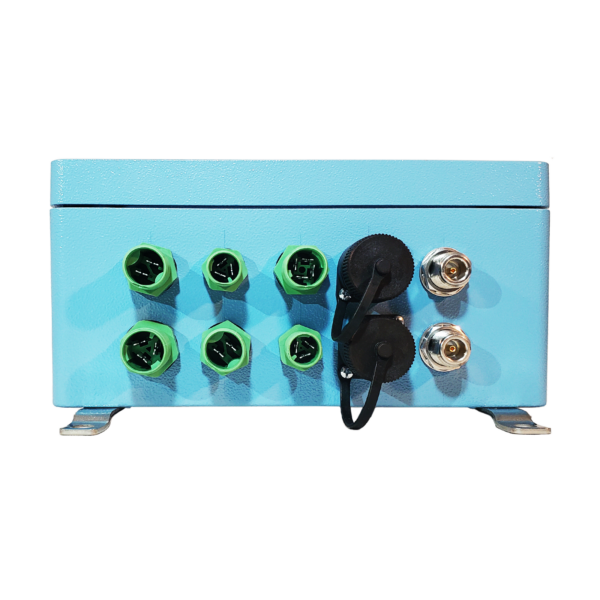

The HK13 microwave resonator uses microwave technology for precise water content measurement and is suitable for a wide range of applications, such as measuring bulk solids, pipes and hoppers.
- Features
- Specification
- Download
- Microwave technology for precise moisture measurements
- Compact design without moving components
- Maintenance-free and wear-free
- Color differences and color changes on the product have no influence on the measurement
- Remote control via separate remote control
- Versatile application possibilities (bulk materials, pipelines, hoppers, etc.)
- No influence of density changes on measurement results
- Real-time measurement, fast results
System: Microwave technology ISM band with Microprocessor and NV-memory
Housing: Die-cast Aluminum
Size H x W x D:
- Compact: 200 x 140 x 90 mm
- Modular: 232 x 200 x 110 mm
Weight: ca. 4 kg
Protection Type: IP65 / NEMA 4
Power supply:
100 – 240 V/ AC optional
24 V/ DC – 50/60 Hz – max. 200mA
PC-interface: RS232 (optional RS485) BINDER BD509/S.693 female connector
2 Analog outputs: 0/4 – 20mA / isolated 1500V
Relay contact: max. 5A / 250 V/ AC (Start / Stop)
Power consumption: 50 VA
PROFI-BUS-DP: optional
Temperature sensor: NTC (Negative Temperature Coefficient)
Environmental temperature: -20°C – +85°C
Product temperature: -30°C – +95°C
Operation with remote control:
Size H x W x D: 200 x 120 x 64 mm
Membrane keypad: 6 integrated soft keys
Display: 2x 24 Sign LCD, LED– backlight
Connection: BINDER BD509/S.693 male connector
