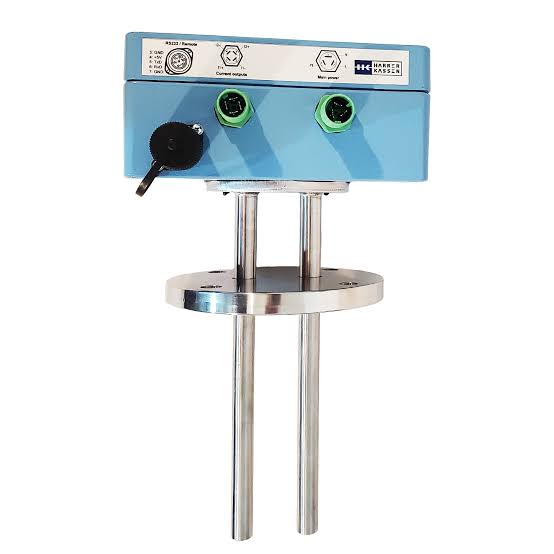

HK6-C / HK6-F
The HK6-C and HK6-F microwave measuring devices offer a reliable solution for continuous concentration and BRIX measurement – optimized for applications in the sugar industry. Both versions are based on the latest digital microwave technology and ensure maintenance-free, precise measurements even under difficult conditions.
- Features
- Specification
- Download
- Especially for the sugar industry:
Ideal for BRIX and concentration measurement on pipelines, continuous and discontinuous pans.
- Pre-calibrated:
Quickly ready for use without time-consuming set-up.
- Compact design:
Robust die-cast aluminum housing space-saving and durable.
- Maintenance-free & wear-free:
For smooth continuous operation.
- Flexible operation:
– HK6-C: Control panel directly on the appliance.
– HK6-F: Remote control with 8 m connection cable or PC - Automatic sensor cleaning (CLN version):
Perfect solution for continuous processes to prevent measurement results from being falsified by sugar build-up.
Housing: Aluminum die casting
Size H x W x D: 200 x 140 x 90 mm
Weight:
- -C/ -C-CLN: ca. 5 kg / ca. 7 kg
- -F/ -F-CLN: ca. 6 kg / ca. 8 kg
Protection Type: IP65 / NEMA 4
Power supply:
- 100 – 240 V/ AC (optional)
24V/DC – 50/60 Hz – max. 200mA
PC-interface: RS232 (optional RS485)
2 Analog outputs: 0/4 – 20mA / isolated 1500V
Relay contact: max. 5A / 250V AC (only for -CLN)
PROFI–Bus/ Net/ Modbus TCP: optional (only for HK6-F / -F-CLN)
Temperature sensor: NTC (Negative Temperature Coefficient Sensor)
Environmental temperature: -20°C – +85°C
Operation HK6-C / -C-CLN:
Membrane keypad: 6 integrated soft keys
Display: 2×24 Sign LCD, LED– backlight
Operation HK6-F / -F-CLN with remote control:
Size H x W x D: 200 x 120 x 64 mm
Membrane keypad: 6 integrated soft keys
Display: 2x 24 Sign LCD, LED– backlight
Connection: BINDER BD509/S.693 male connector
Sensors antennas:
Material: Stainless steel
Size antennas: Ø 16 x 195 mm
Flange:
- HK6-C / -F: DN65 / PN6
- -C-CLN / -F-CLN: DN65 / PN16
(Any other flange on request)
Product temperature: >0°C – +120°C
Sensors cover:
Standard:
- PP up to 120°C
On request:
- Teflon up to 170°C
- PEEK up to 250°C
